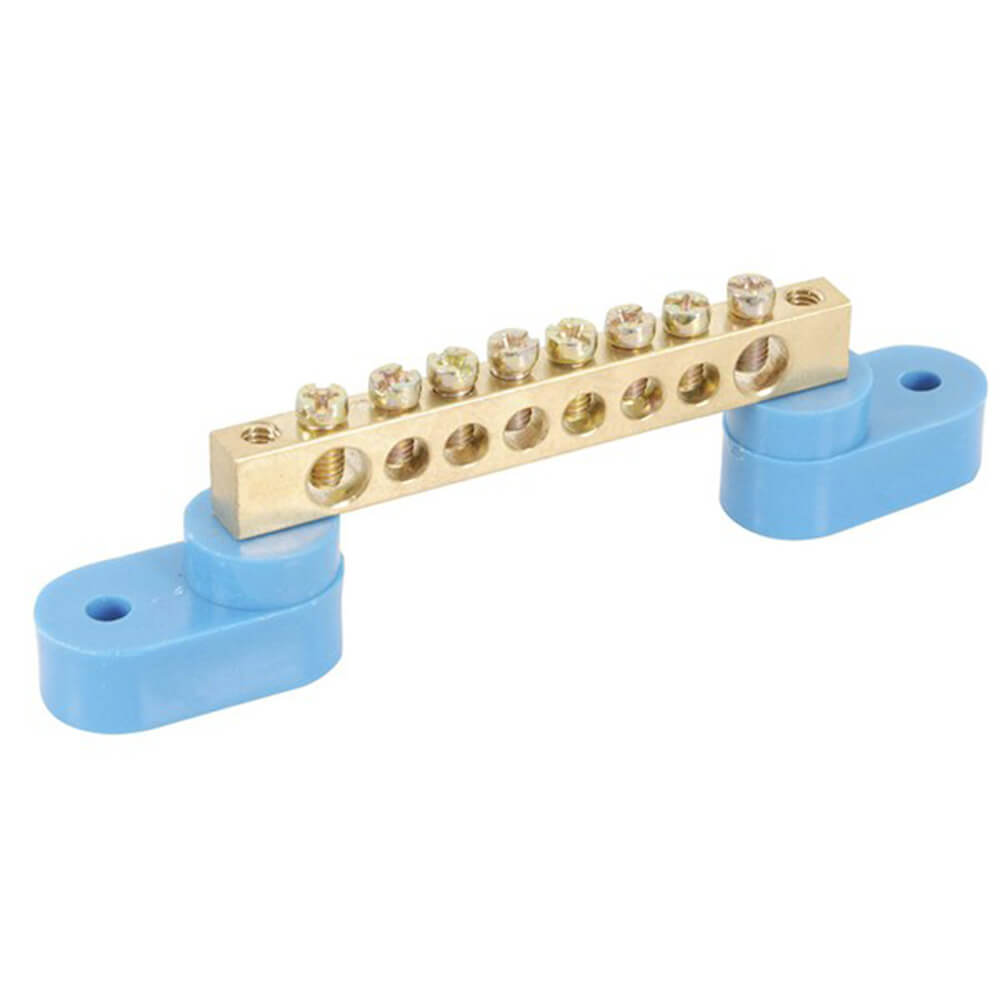

Machined Brass Busbar (8-Way)

These are usually used to give an electrically common point for each wiring but are also useful for low voltage tie points, especially on boats or RV's, Caravans etc., 6 holes accept up to a 4.5mm wire bundle and the outer 2 a 6.0 bundle. The Busbar has insulated standoffs at each end, which can be removed so that the assembly can be screwed directly to a chassis. The standoffs have a conservative insulation rating of 1000V.

Features:

All screws M4.0 Brass bar 9.0 x 6.0

Product Specifications

• Length : 100mm
• Mount Screw Size : 4.5mm, 6mm
• Packaged Volume : 0.11l
• Packaged Weight : 0.03kg
• Packaged Length : 15cm
• Packaged Width : 4.7cm
• Packaged Height : 1.5cm
• Dimension for : Other (details below)
• Dimensions details : Without Standoffs
• Length : 65mm
