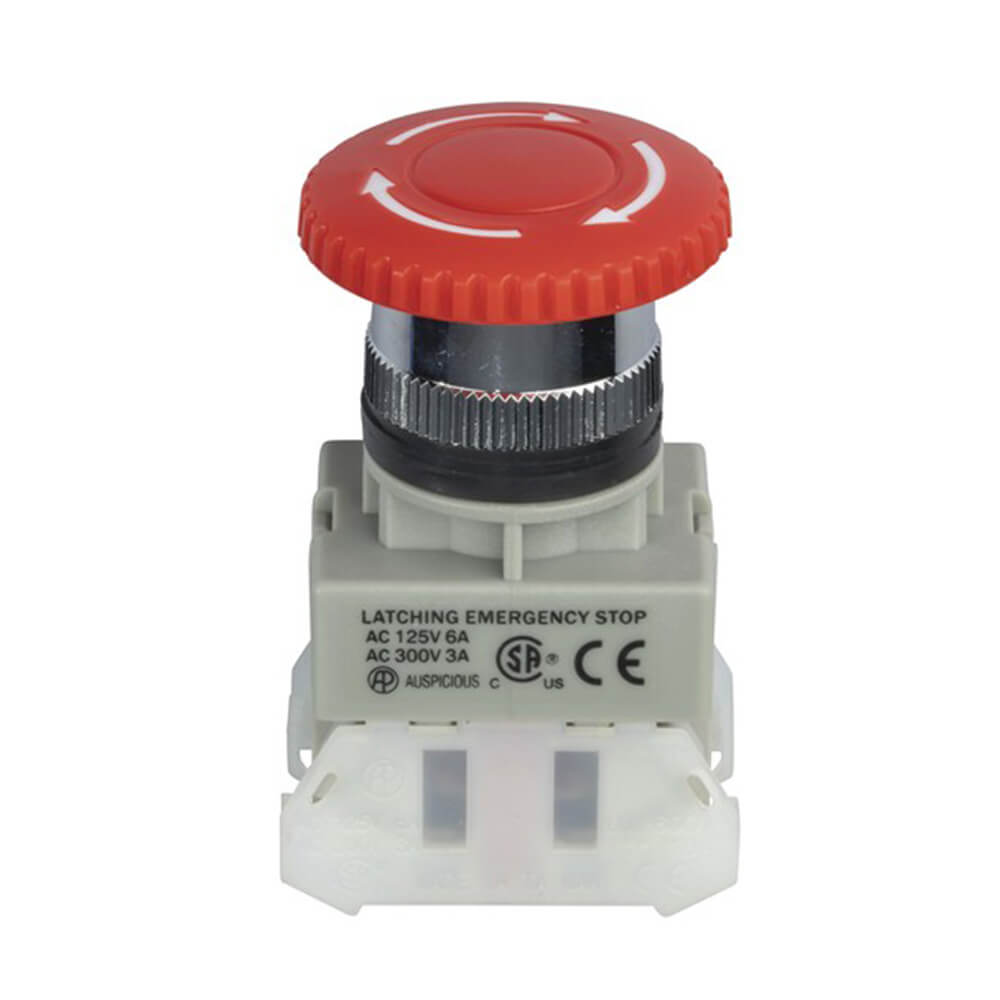

Latching Emergency Stop Switch

Essential for installations of industrial or lab equipment. Latching actuator with rotating release. Two sets of contacts: one normally open, one normally closed. When the actuator is pushed in, the contacts change state, ensuring the equipment can't be operated until the switch is intentionally disengaged by rotating the actuator and releasing.

Features:

Configuration: 2 contact sets, normally closed (RED) & normally open (GREEN)

Actuation: Push off, rotate on

Product Specifications

• AC current rating : 6A, 3A
• AC Voltage rating : 125V, 300V
• Packaged Volume : 0.08l
• Packaged Weight : 0.05kg
• Packaged Length : 7cm
• Packaged Width : 4cm
• Packaged Height : 3cm
• Switch Type : Pushbutton
• Poles / Contacts : 2 pole
• Throws / Positions : 2pos
• Switch Function : Locking On/Off
• Actuator Length : 35mm
• Actuator Width : 24mm
